Confocal Laser Scanning Microscope / Module by Southport
Jade Mat

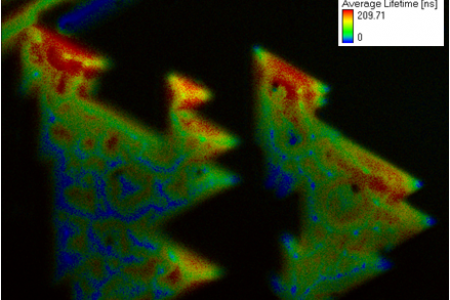

JadeMat is a Raman/PL/Imaging solution with an easy-to-use user interface. We develop a special Raman and PL measuring mode to prevent sample damage. Besides, in TRPL/FLIM acquisition, JadeMat is capable of acquiring high-resolution images.

  • Non-destructive and high resolution
  • Self-define pixel dwell time
  • Automatic switching between lasers
  • Multi-channel design
  • Using referenced scan image to get localized spectrum
  • Changing the detection pinhole for choosing suitable resolution
  • Work with most kind of spectrometers: Ocean, Andor, JY...etc
  • Fast mapping mechanism, spectrometer data transfer time as low as 1ms
  • Surface and 3D profiler
  • Closed loop motorized Z-axis

Material Science, solar, food and other application fields.

  • JadeMat is combined with wide field module to monitor sample with white-light microscope
  • Imaging all samples with sub-micron resolution. Pixel dwell time can be tuned by specifying a number in ms.
  • Easily combine with Raman and PL measurements.
  • Combine spectrometers JadeMat can perform the high-speed spectral mapping with data transfer time down to 1ms.
Model JadeMat
Frame Rate 1 fps (512x512 pixel)
XY Resolution (Beam Spot) Fulfill diffraction limit (Typically < 0.5 um with high NA objectives)
Objective Lens 5 X, 10 X, 20 X, 50 X, 100 X...etc. (User defined)
Scanning Zoom In 1X (Full range) to 20 X
Field of View 600 um to 10 um
Detector Analog or Digital PMT (Optional)
Scanning Method 0-D point scan (Spectrum acquisition), 1-D line scan, 2-D frame scan (XY),3-D scan (XYZ, XYT, XYλ), 4-D scan XYZT, 5-D scan XYZλT
Input Channel Up to 4 channel input
Signal Acquisition Digital Acquisition, 250MHz high-Speed Counter (Optional)
Sync Signal Line start trigger (FLIM), Line stop trigger (FLIM), Frame trigger (FLIM), Customized trigger signal
Software Jade Mat
Image Reader / Analyzer Jade Reader
  • Spectrometer
  • XY Motorized Stage
Jade Bio

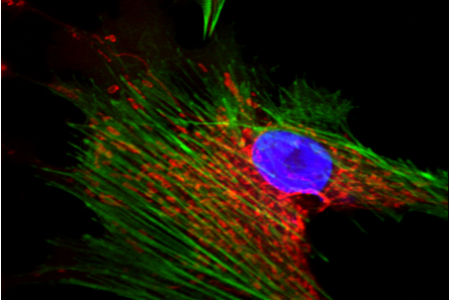

The Jade Bio is Confocal-Like Addon,which can be added to an existing microscope in the laboratory. The imaging software is very streamlined. It is completely customized for the laboratory and can be acquired immediately.

  • Simplified design, plug-and-play
  • Multi-channel simultaneous display
  • Imaging process software included reader
  • Available for most kind of microscopes
  • Experienced in in vivo imaging, we can provide service for chamber design

Life sciences, medicine, food and other application fields.

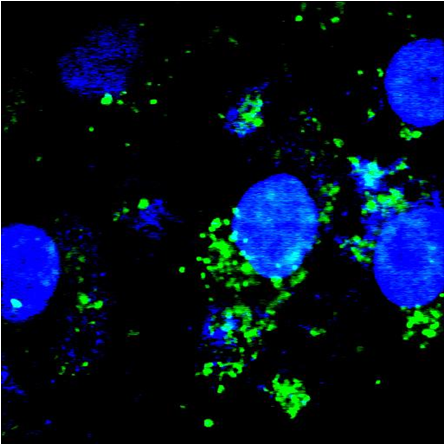

Utilizing Jade Bio, we can see if the drug penetrates into cell nuclei. Without confocality and simultaneous imaging, drug penetration couldn't be seen easily.

Model Jade Bio
Microscopes SouthPort Wide Field Microscope, Zeiss AXIO series, Leica DM series, Olympus BX/IX series, Nikon Eclipse series, User Defined Optical Systems , (Please contact us for details and consulting)
Frame Rate (512x512) Low Speed: < 1.1 fps (wide range), High Speed: 16 fps(Optional) (single scan rate), Hybrid system also available
Objective Lens 5 X, 10 X, 20 X, 50 X, 100 X...etc. (User defined)
Scanning Zoom In 1X (Full range) to 20 X
Field of View 800 um to 40 um (Typical 20x objective)
Detector PMT: Higher sensitivity, low noise; PMT+: Higher sensitivity, high noise; HyD: Highest sensitivity, lower noise
Wavelength Selector(Optional) Manually define acquisition wavelength (Motorized define acquisition wavelength)
Scanning Method 0-D point scan, 1-D line scan, 2-D frame scan (XY), 3-D scan (XYZ, XYT, XYλ), 4-D scan XYZT
Input Channel Up to 4 channel input
Signal Acquisition Analog:16-bit Signal Acquisition
Enhance SN Upgrade SouthPort ULH Module (Patented)
Sync Signal Line start trigger (FLIM), Line stop trigger (FLIM), Frame trigger (FLIM), Pixel Clock
Software Jade Bio
Image Reader / Analyzer Jade Reader
  • PMT Box (or stand-alone PMT)
  • Microscope Module
  • Shutter
  • Photon Counting Module
  • Autofocus module
  • Motorized Z stage
  • Motorized XY stage
  • Motorized nosepiece
  • TCSPC System
  • SouthPort Jade SDK
