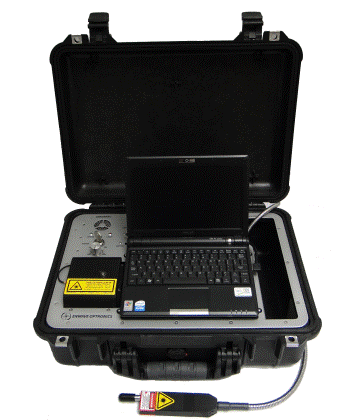

EZRaman-I Series High Performance Portable Raman Analyzer

Description:

The EZRaman-I Series are high-sensitivity field portable Raman instruments suitable for laboratory and/or field analysis.

The EZRaman-I spectrometer features a highly sensitive spectrograph with CCD cooled to -50ºC. It also includes a high-throughput laboratory fiber optics probe. This tools is ideal for demanding onsite Raman identification, chemical process monitoring in the lab, and many academic, research, industrial applications.


The following table will help you choose a EZRaman-I Raman spectrometer that meets your requirements for laser, laser power, wavelength range, and detector temperature.

Model Laser Wavelength Range Laser Power Average Spectral Resolution Detector Temperature
EZ-I-7B1S 785nm 100-3300 cm-1 0-350 mW 7 cm-1 - 50 Deg C
EZ-I-7A2S 785nm 250-2350 cm-1 0-350 mW 6 cm-1 - 50 Deg C
EZ-I-7A1S 785nm 100-2200 cm-1 0-350 mW 6 cm-1 - 50 Deg C
EZ-I-5B1S 532nm 100-3100 cm-1 0-50 mW 7 cm-1 - 50 Deg C
EZ-I-5C1X 532nm 100-4000 cm-1 0-50 mW 10 cm-1 - 50 Deg C
EZ-I-DUAL 785nm, 532nm 250-2350 nm-1 and 100-3100 cm-1 0-350 mw, and 0-50 mW 6 cm-1 and 7 cm-1 - 50 Deg C
  • High sensitivity Raman system for laboratory & chemical process monitoring
  • High performance fiber optics probe (O.D.> 8 at laser wavelength)
  • Best performance/cost ratio
  • Compact, reliable, and easy to use
  • Pharmaceutical and food applications
  • Chemicals and polymers
  • Biological
  • Geology/Mineralogy/Gemology
  • Carbon nanotubes, graphene
  • Solar cells
  • Paper & pulp
  • Many other applications
  • Li-Ion Battery for EZRaman-I
  • Pre-Aligned Lens Tube for measurement on contact for solid samples
  • HNA High NA Lens Tube with working distance from ~3mm (NA= 0.55)
  • Immersible Lens Tube
  • Lens Tube WD3- Lens tube working distance 3mm ; NA = 0.55
  • Lens Tube WD10 - Lens tube working distance 10mm ; NA = 0.25
  • MVW µV-785 µViewer Converter with 1.3M Pixel CMOS Viewing Camera and in-line LED lighting
  • Probe Holder-XYZ Precision Stage for fine adjustment of sample measurements
  • Sample Holder for Measure liquid samples in vials or cuvette
  • Large Beam Spot Lens Tube with spacer
  • Remote Measurement Lens and Tripod
  • Large beam spot lens tube
