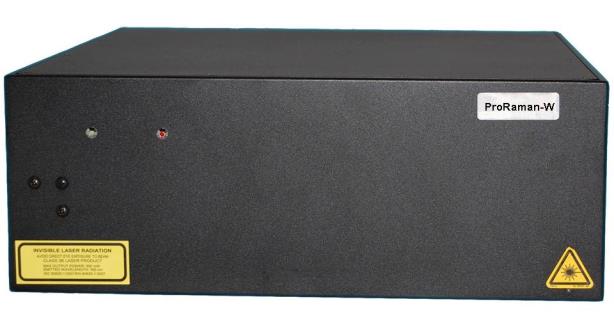

ProRaman- W Series Industrial Process Raman System


Description:

The ProRaman-W features a stabilized laser, high-sensitivity CCD spectrograph. The CCD cools to -60ÂșC and includes a high throughput immersion fiber optics probe.

The ProRaman-W series is ideal for on-line process monitoring and for any academic, research, industrial applications requiring an affordable, high performance Raman instrument.


The ProRaman-W Raman spectrometer comes in a range of lasers, laser powers, spectral resolutions, and other available options. Use the table below to choose the model that best suits your needs.

Model Laser Wavelength Range Laser Power Average Spectral Resolution Detector Temperature
PRO-W-7B1X 785 nm 250-3200 cm-1 0-450 mW 5 cm-1 -60 deg C
PRO-W-5B2X 532 nm 250-3200 cm-1 0-100 mW 5 cm-1 -60 deg C
PRO-W-5C2X 532 nm 250-4400 cm-1 0-100 mW 10 cm-1 -60 deg C
  • High sensitivity Raman system for laboratory & industrial process monitoring
  • Best signal to noise characteristics of any laboratory Raman instrument
  • Accurate, fast, repeatable Raman measurements
  • Research grade performance without the price and complexity
  • High power, NIR, frequency stabilized, narrow linewidth excitation source
  • compliant - 21 CFR part 11 and GMP compliance
  • Academic
  • Research
  • Industrial
  • Immersion fiber optics probe, O.D. > 8 Rayleigh rejection
  • Optional 21CFR Part11 compliant software for Pharmaceutical on-line process control applications
