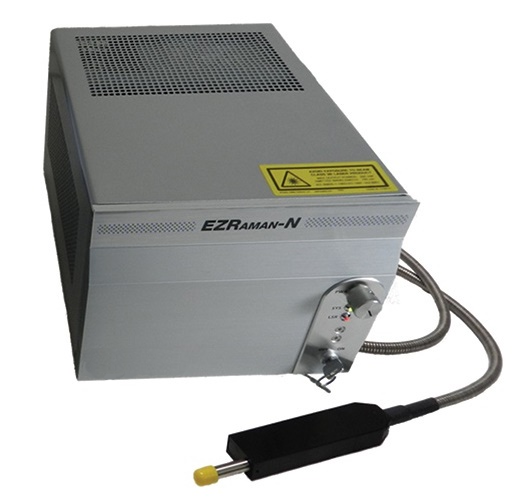

EZRaman-N Series Affordable Raman Spectrometer


Description:

The EZRaman-N Raman spectrometer features a narrow line-width frequency-stabilized laser. It uses a high-throughput fiber optics probe, and an optically fast (f/1.6) spectrograph with TE cooled CCD detector. The EZRaman-N system is easy to use, with powerful and user-friendly RamanReader software and provides excellent long term reliability with minimal maintenance.


We have several models of the EZRaman-N. Choose the model that best suits your application, by laser or laser power, wavelength range, spectral resolution, or detector temperature range

Model Laser Wavelength Range Laser Power Average Spectral Resolution Detector Temperature
EZ-N-7B1S 785 nm 100-3300 cm-1 0-300 mW 7 cm-1 -30 Deg C below Ambient
EZ-N-7A1S 785 nm 100-2200 cm-1 0-350 mW 6 cm-1 -30 Deg C below Ambient
EZ-N-7A2S 785 nm 250-2350 cm-1 0-300 mW 6 cm-1 -30 Deg C below Ambient
EZ-N-5B1S 532 nm 100-3300 cm-1 0-50mW 7 cm-1 -30 Deg C below Ambient
EZ-N-5C1S 532 nm 100-4000 cm-1 0-50mW 10 cm-1 -30 Deg C below Ambient
  • Improved sensitivity with high throughput (f/1.6) optical design
  • Shorter integration time give better reaction monitoring snapshots
  • Actuate and system to system portable Raman data enable confident material identification and chemical analysis
  • No moving parts in instrument provide highly repeatable and reliable spectral data.
  • Intuitive, simple, and powerful software interface
  • No or minimal sample preparation
  • iber optic probe enables flexible sampling configuration
  • Compact and robust; easy to move from one location to another
  • Rugged construction for long-term stability and little maintenance
  • Best performance/price ratio in affordable portable Raman analyzer
  • Chemistry and chemicals
  • Gemology, mineralogy and geology
  • Polymers and plastics
  • XYZ Precision Stage for fine adjustment
  • Sample Holder for Measure liquid samples in vials or cuvette
  • Pre-Aligned Lens Tube for measurement on contact for solid samples
  • Lens Tube WD3 - Lens tube working distance 3mm
  • Lens Tube WD10 - Lens tube working distance 10mm
  • Large Beam Spot Lens Tube with spacer
  • MVW µViewer Converter with 1.3M Pixel CMOS Viewing Camera and in-line LED lighting
